Color-Coded Materials Matched to Color-Coded Dies to Prevent Wrong Die Selection

Each material type carries a color that maps to a matching die color, so operators pick the right die by sight.

Creator
WillytheMinimalist
Company
JCR Offroad
Wastes
DefectsMotion
Problem

Operators had to remember which die pairs with which material. A wrong die selection produced defective parts and forced rework.

Solution

The team assigned each material type a color and gave the matching die the same color. To run a job, the operator matches the material color to the die color, making the correct pairing obvious at a glance.

Lean principle

Encode the correct choice into a visual control so the right action is the easy action.

What is a Color-Coded Materials Matched to Color-Coded Dies to Prevent Wrong Die Selection?

This is a color-coding visual control that links two paired items: raw material and the die that forms it. Every material type has a dedicated color, and the die it requires wears that same color, so the correct match is visible without lookup tables or memory.

Instead of relying on an operator to recall or verify a pairing, the color scheme carries the knowledge. The setup decision that engineers already proved correct is baked into the color, then reused on every run by every operator.

It is a mistake-proofing device. The system does not just remind the operator; it makes the wrong die obvious because its color will not match the material at hand.

Why it works

The color match turns a proven setup rule into a reusable visual anyone can apply.

  • The correct material-to-die pairing, once established by engineering, is captured in color and reused on every job.
  • Any operator, new or experienced, can select the right die without training documents or memory.
  • A mismatched color signals a wrong die before the machine runs, catching the error early.
  • The knowledge lives on the parts and tools themselves, not in one person's head.

How to create this idea

  1. 1
    List the material-die pairs

    Identify every material type and the specific die each one requires.

  2. 2
    Assign one color per material type

    Give each distinct material a unique, easily distinguished color.

  3. 3
    Mark the die with the matching color

    Apply the same color to the die that pairs with each material.

  4. 4
    Make the match the standard step

    Instruct operators to confirm material color equals die color before running the machine.

  5. 5
    Audit and maintain the coding

    Keep a color legend visible and refresh faded or damaged color marks.

Best used when

  • paired tooling
  • frequent changeovers
  • multiple material types
  • high defect risk

Less useful when

  • single material line
  • one die only
  • no visual distinction possible

Products and tools mentioned

  • dies: Tooling for cutting, forming, or shaping material in presses.

Tags

Problem
defectswrong diesetup errors
Lean methods
visual controlmistake-proofingcolor coding
Application
die selectionmaterial matchingmachine setup
Source

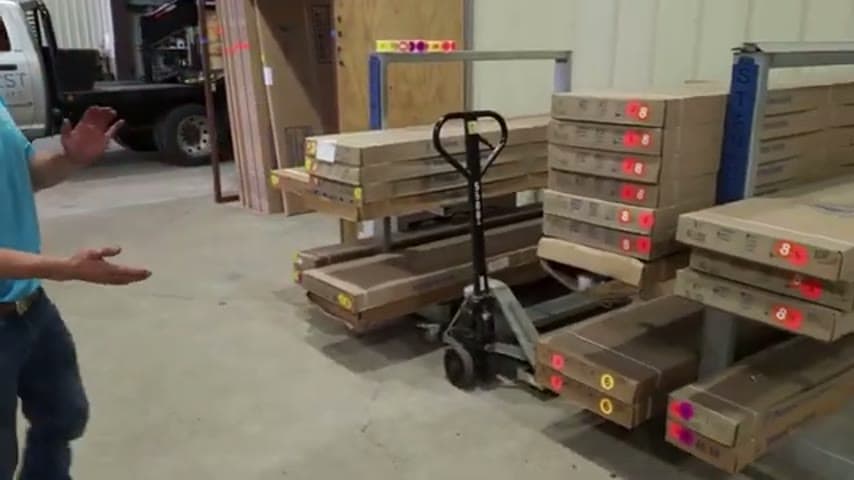

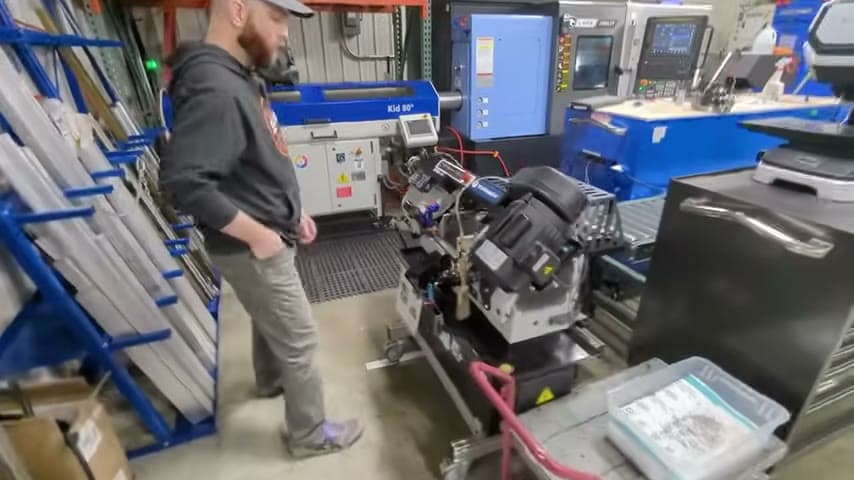

Captured from WillytheMinimalist at JCR Offroad in the video "Lean Tour of JCR in Michigan", at 00:04:13. On Lean Toolbox. Watch the original video on YouTube ↗
